Carolina Park car dealership development

A car dealership development currently underway in Carolina Park, Mount Pleasant. GDI is flying and processing this site end to end, from flight planning through orthomosaic, surface model, and a full Site Intelligence Report, as a working demonstration of a recurring documentation program.

Project record

Site: Carolina Park, Mount Pleasant, SC
Use: Car dealership development
Capture: Grid mission, nadir imagery at 197 ft, 75% front and side overlap
Area: 9.45 acres per flight
Images: 240 per flight
Resolution: 1.7 cm (0.7 in) per pixel
Latest flight: 07/03/2026
Outputs: Orthomosaic, point cloud, surface model, KMZ overlay, sample Site Intelligence Report
Status: In process

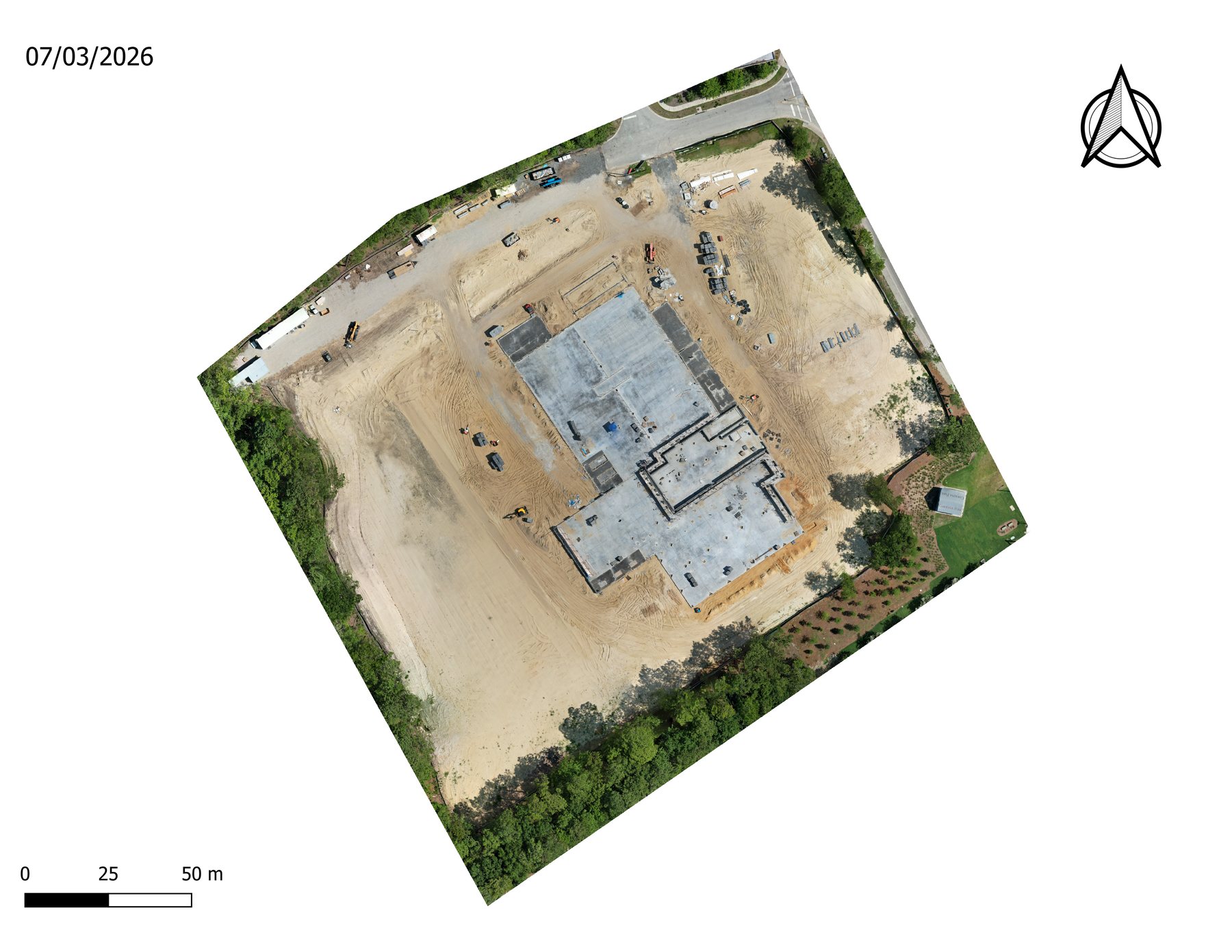

Orthomosaic of the Carolina Park dealership site on 07/03/2026, showing the building slab, graded pad, and staging areas, with north arrow and 50 m scale bar — Orthomosaic, 07/03/2026

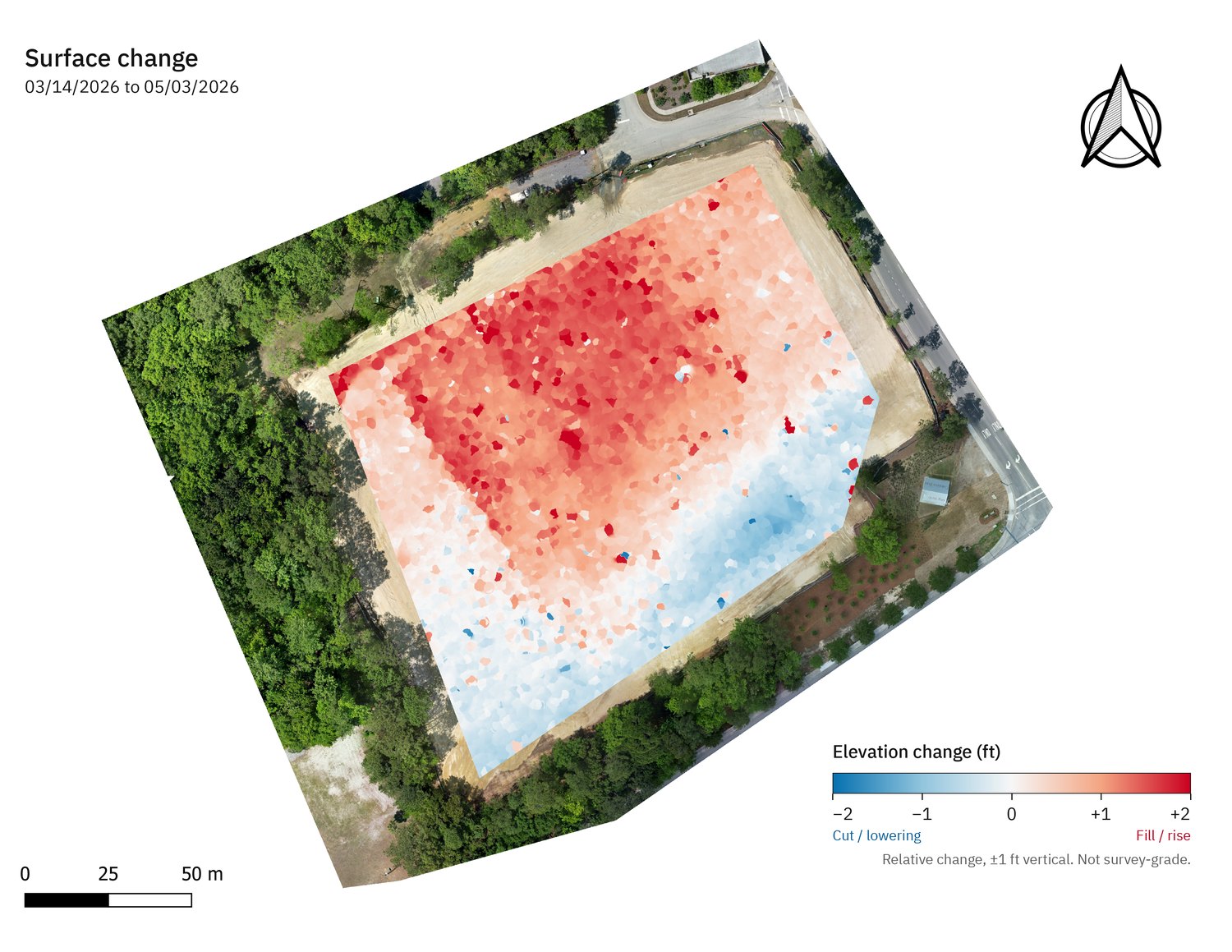

Surface change heatmap of the graded building pad, 03/14/2026 to 05/03/2026. Warm tones show surface rise (fill), cool tones show lowering (cut), on a scale of minus 2 to plus 2 feet — Surface change, 03/14 to 05/03/2026

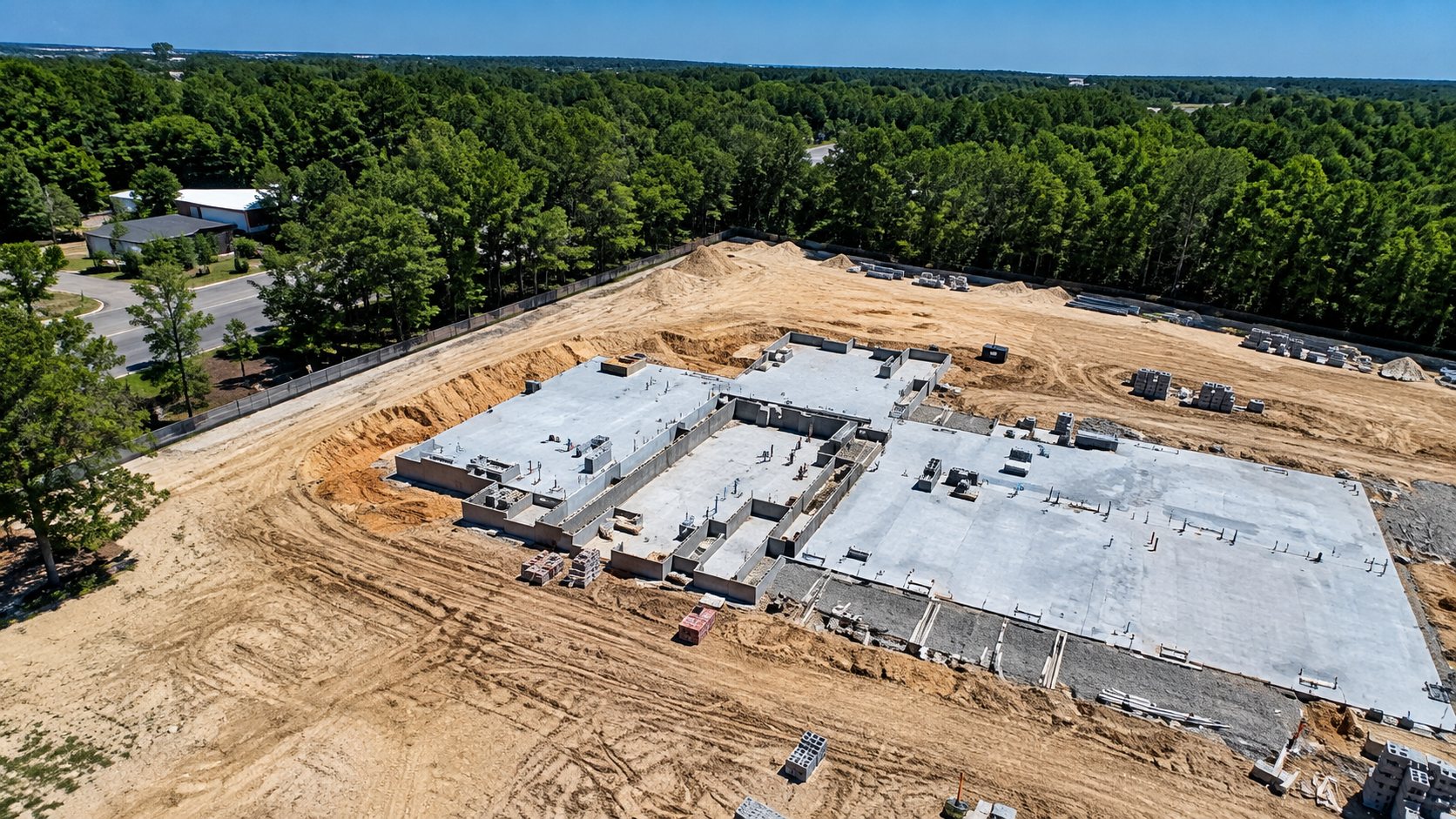

Oblique aerial photo of the dealership slab and foundation walls with the surrounding pine buffer — Oblique aerial, slab and foundation walls

Time-lapse

Watch the site take shape.

Every flight follows the same plan, so the captures line up into one continuous time-lapse of the site.

What this shows a GC

One flight, three answers.

Where are we?

The orthomosaic shows current site conditions at a measurable scale.

How much moved?

The surface model is the baseline for cut/fill and stockpile volumes on the next flight.

Who needs to know?

The report packages it for OAC meetings and owner updates without anyone opening GIS software.
